如何实现折现弯曲进度条

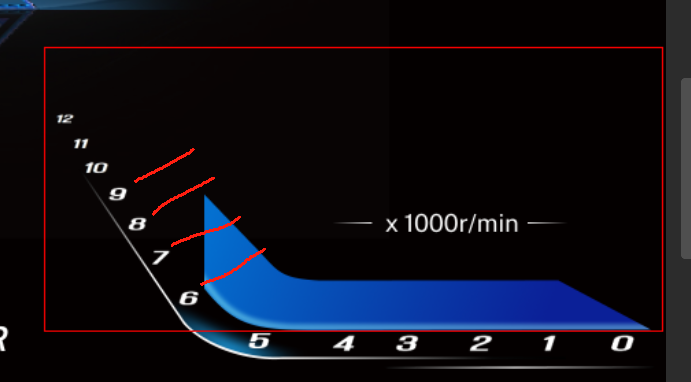

lvgl使用什么方法能实现这种进度条,如果用画布的话,但不能给绘制的圆弧或者进度条添加图片源
1745567335148

可以使用滑块部件slider,用两张图片,一张是量程满的图片,一张是量程全空的图片

这样的话,到斜着的部分就还是水平或者垂直增加,不能是斜着的了,效果可能就会差很多了

V9的话看看lv_demo_vector_graphic_buffered,不过感觉也很难实现,还是用图片比较好

可以去看看squareline_studio这个软件里面的案例是怎么实现的,里面可以做到这种功能

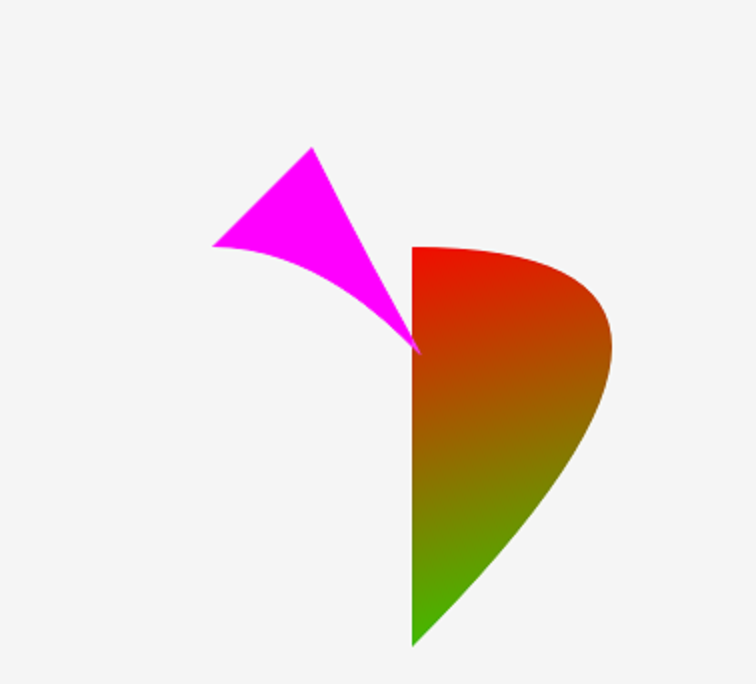

曲线太难算了,这个是纯代码绘制的

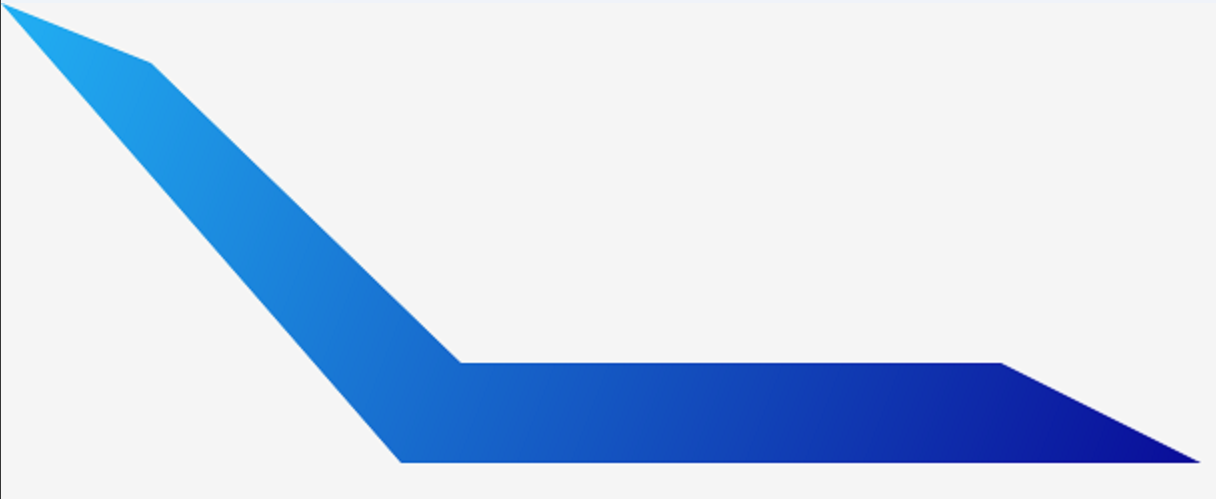

static void draw_my_gradient(lv_vector_dsc_t* ctx, lv_vector_path_t* path)
{
lv_vector_path_clear(path);
lv_vector_dsc_identity(ctx);

lv_fpoint_t pts[6] = {
{ 0,  0},
{75,  30},
{230, 180},
{500, 180},
{600, 230},
{ 200, 230}
};

lv_vector_path_move_to(path, &pts[0]);

for (int i = 1; i < 6; i++) {
    lv_vector_path_line_to(path, &pts[i]);
}
lv_vector_path_close(path);

lv_grad_stop_t stops[2];
lv_memzero(stops, sizeof(stops));
stops[0].color = lv_color_make(34, 177, 244);
stops[0].opa = LV_OPA_COVER;
stops[0].frac = 0;
stops[1].color = lv_color_make(10, 12, 153);
stops[1].opa = LV_OPA_COVER;
stops[1].frac = 255;


lv_vector_dsc_set_fill_linear_gradient(ctx, 0, 0, 600, 230);
lv_vector_dsc_set_fill_gradient_color_stops(ctx, stops, 2);
lv_vector_dsc_set_fill_gradient_spread(ctx, LV_VECTOR_GRADIENT_SPREAD_REPEAT);
lv_vector_dsc_add_path(ctx, path); // draw a path

}

确实很难实现曲线,你这个也很好

主要是你这个是进度条,你还得去计算所有的点的变化,这才是最麻烦的

其实可以使用滑动块slider组件+图片来实现的,一张量程全满和一张量程全空,在squareline_studio软件里面有实现案例的

是的,这个我知道,我也建议他用图片+slider,省事简单


谢谢大家给的建议,其实我想表达的是如果是斜着的话,可能slider+图片效果不是很好,slider是水平或者垂直方向增长

明白你意思了,好像确实也没什么好办法
